Item Number 153162
https://youtu.be/J-zz23oGqAM
-
Description:

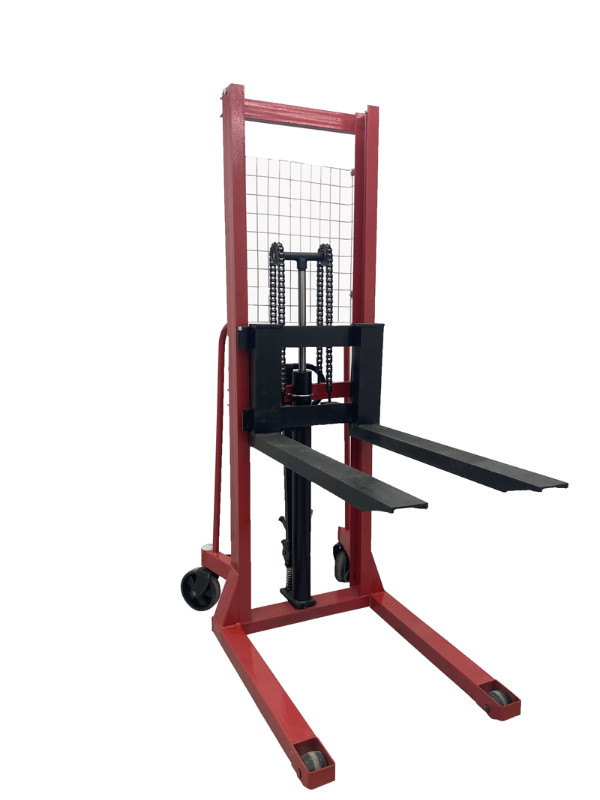

The machine is a high-lift truck handling and short-distance transport two-purpose vehicle. Because the machine does not produce sparks and electromagnetic fields, the machine is especially suitable for car handling and transportation of flammable, explosive and fireproof goods in workshops, warehouses, docks, stations, garages and other places. The product achieves the lift balance, rotates flexibly and is easy to operate.
The Machine is light weight and easy to operate. The high-strength mast fork structure is adopted, and the main part seals are made of imported materials and are safe, reliable, durable and powerful. The machine is an unpowered pollution-free manual hydraulic lift truck.
The machine has a compact structure, flexible to transport and easy to maintain.
It is suitable for goods increase, lifting and handling and other operations in factories, workshops, warehouses, railway stations, docks and other places, is more suitable for the places with high fireproof requirement (such as printing workshops, depots, wharfs, etc.).
When the machine used together with pallets, cartons, containers and so on, unitization transportation can be realized. The undesirable phenomena of collision, brushing, scratches are better overcome, and the civilized lifting and transport operations can be achieved.
-
Supplementary Instructions
1.This kind of manual hydraulic stacker is especially not suitable for loading large volume goods.
2.Actual load capacity:The volume shall not exceed 1m*1m*1m, and the weight shall be within 1 ton.
3.Due to shipping or humid environment, the product may have rust spots, please know.
-

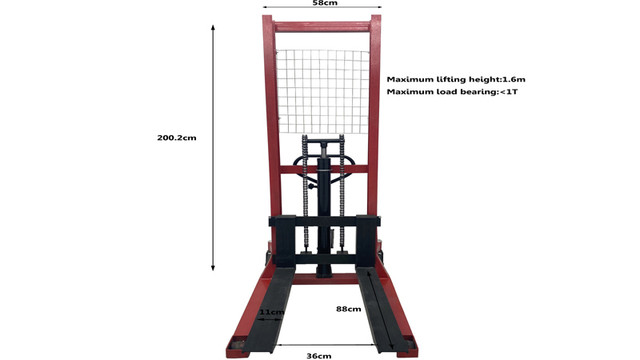

Specification:
Total height of the unit: 78inch(1.98m)
Rated lifting weight: 1000Kg (2204lbs)
Maximum lifting height: 1600mm (63")
The lowest height: ≤100mm(4")
The range of adjustment width: 220 ~ 580mm(8.7" ~ 22.8")
The inside wide of car legs: 580mm (22.8")
maximum outside width: 580mm(22.8")
total length: 800mm (31.5")
Load center distance: 400mm(15.7")
Lifting speed/time: ≥ 15mm(0.6")
Lowering speed control: Can control
Turning radius: ≤ 1380mm(54.3")
-
Item Included:
1 set of 1 Ton Manual Hydraulic Pump Walkie Stacker Forklift Reach Pallet (153162)
