Description
Item number: 053192
-
Product Overview
This servo motor control kit has a wide range of applications, providing a power source for sewing, woodworking, DIY and more. Up to 23-bit encoder with the latest third generation servo drive control algorithm for more stable operation and faster response. Multi-function protection with over-current, overload, over-voltage and so on. All-copper motor with stepless adjustable high power.
Product Parameters
Model: LL1100
Voltage: 110V
Power: 1100W
Range Of Rotation Speed: 200-6000rpm
Rated Torque: 3.55n.m
Installation Size: 2.7"(69mm)
Mounting Flange: 3.5"(89mm)
out Shaft Diameter: 0.59"(0.79)"(15mm(20)mm)
out Shaft Length: 1.06" 0.59"(27mm 15mm)
Motor Length: 4.33"(110mm)
Mounting Thread: M6 through hole
Keyway: 0.2"*0.2"*0.79"(5mm*5mm*20mm)
Package size: 12.99"*9.45"*6.69" (33cm*24cm*17cm)
Net weight/Gross weight: 7.17lbs(3.25kg)/8.05lbs(3.65kg)
Product Features & Advantages
a. Aluminium alloy head
The use of high-quality aluminum head, light weight, good heat dissipation, strong anti-explosive properties, reducing fuel consumption, and not easy to crack in the high-intensity working condition.

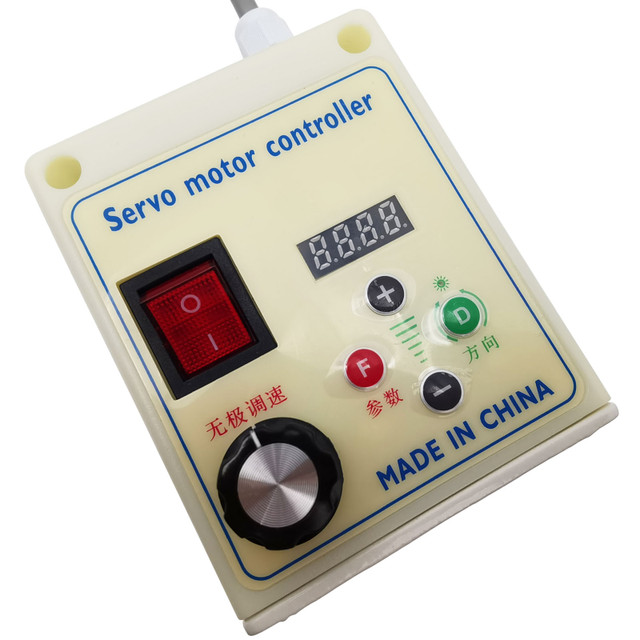

b. Convenient controller
Simple operation, can adjust the speed, change the direction, parameter selection, stepless speed regulation, non-destructive start, wide speed regulation range.
c. Motor
Adopts pure copper core motor, strong power, high efficiency; Simple structure, can work stably for a long time, high reliability, low maintenance cost.
d. Heat emission hole
There are a large number of vents on the head of servo motor, which can timely discharge the excess heat generated by the motor, prevent the temperature from being too high, and protect the motor.
e. Mounting Hole
The mounting fixing holes on the base make it easy to secure the base to the tabletop, ensuring the stability and security of the device.
Features:
- Adopting advanced heat dissipation design technology, lower temperature rise; built-in filter, strong anti-interference ability.
- Adopting high quality aluminum head, not easy to crack under high intensity working conditions.
- Thickened protective cover to prevent sparks and dust splashes, prevent the blade from breaking and hurting people.
- Non-destructive start, wide speed range, high torque, low noise, energy saving and environmental protection.

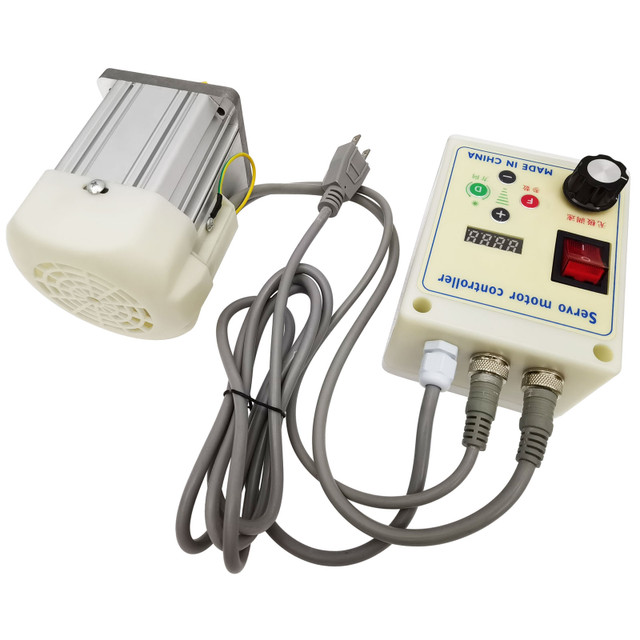

Item Included: 053192
Servo Motor *1
Servo Motor Controller *1
Key *1
Nut *1
