2025 Yamaha F20SMHB

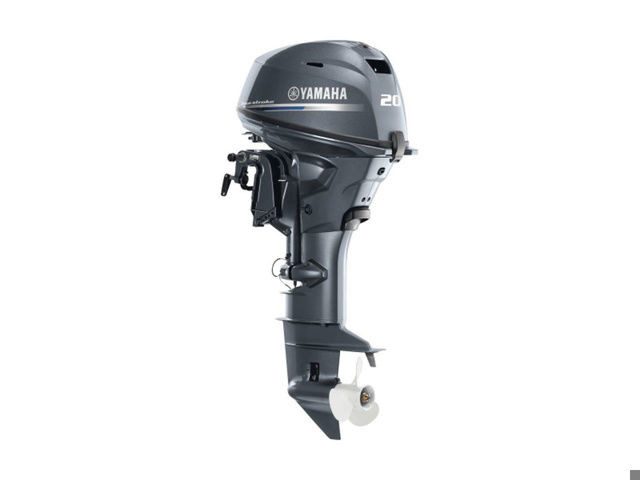

2025 Yamaha Marine F20SMHB - Short Shaft, Manual Start Outboard Motor

Built around the Innovation Award-winning F25, the next-generation Yamaha F20 is big on features and big on performance. It delivers the perfect combination of power, efficiency and convenience with the versatility to power a wide variety of boats.

Code: 20 SMHB- Short Shaft, Manual Start
ENGINE TYPE: SOCH In-Line 2 cylinders
DISPLACEMENT: 362cc
BORE & STROKE: 63.0x58.1mm (2.48x2.29in)
RPM RANGE: 5000-6000
COMPRESSION RATIO: 9.3
INDUCTION SYSTEM: SOHC
ALTERNATOR OUTPUT: 12V-10 Amps (6.5Amp @ 1000rpm)
FUEL DELIVERY: Batteryless EFI
STARTING: MANUAL
IGNITION: CDI Mircocomputer
LUBRICATION: Wet sump
DEGREE OF TRIM/TILT: 4 positions/71?
EXHAUST: Through Propeller Hub
GEAR SHIFT: F/N/R
GEAR RATIO: 13/27 (2.08)
Dry Weightin. 111 lbs

RECOMMENDED FUEL: Regular Unleaded
RECOMMENDED OIL: Yamalube 4-M FC-W 10W-30 or 20W-40
OIL CAPACITY: 1.6L (1.7 qt)
