Flextherm GS240K0173 Floor heating

Attention flooring contractor! Super deal! Cash only, no refunds, take as is, save the environment, buy local

May not contain all parts; but looks like not previously used.

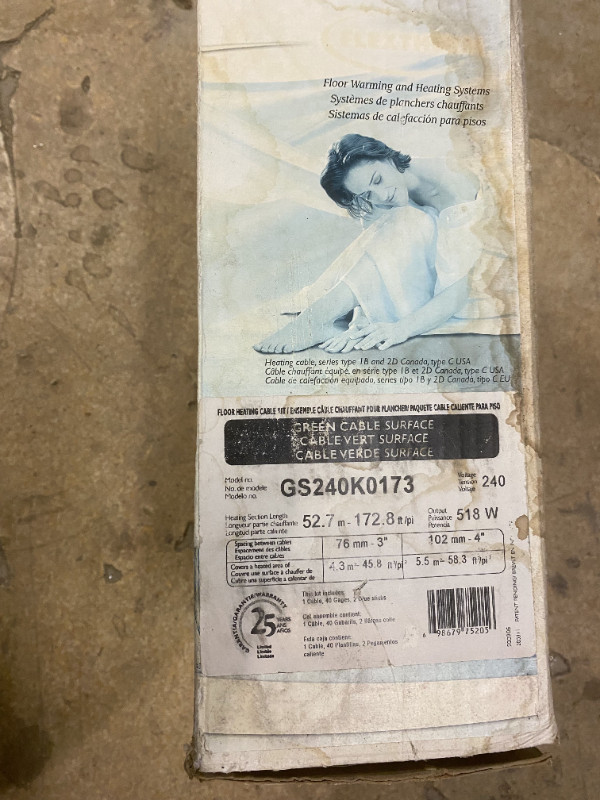

From other internet sources: Description FLEXTHERM Green Surface Cable 3W 240V 173 linear ft. covering an area of ​​(3") 45.8 sq. ft. Or (4") 58.3 ft. That. Power 518W Amperage 2.2A Package included, installation templates, and installation guide.

Coverage for 3" spacing: 45.8 ft² Coverage for 4" spacing: 58.3 ft²

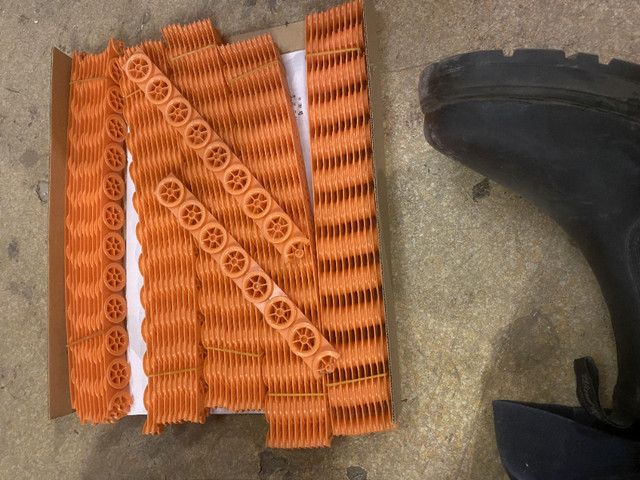

Description Whether your project involves a bathroom, kitchen, basement or other room, Green Cable Surface offers you optimum comfort. It perfectly fits all room shapes, offers maximum heating power and is compatible with most floor coverings. Designed for dry and wet spaces, it is easy to install thanks to the Universal Snap-in Gages and to the fact that it is not necessary to return the cable to the thermostat.BENEFITS:With an ingenious installation system and premium materials, Green Cable Surface provides optimum comfort.• Compatible with most floor coverings• Fits all room shapes and sizes• Designed for installation in wet environments (make sure that the installation complies with the local and/or regional electrical code)• EMF-free (electromagnetic fields)*• Does not dry out air or spread dust and germs• Requires no maintenance• Easy installation: no return to the thermostat• Robust mechanical joint system• Universal Snap-in GagesTM• Small diameter cable that reduces the quantity of cement- glue or self-leveling underlayment required for glazing• Strong and reliable copolymer jacket• Manufactured entirely at our plant, where quality controls are implemented throughout the entire production process• CSA approved (Canada and U.S.)• 25 year limited warranty*Based on the installation instructions included in our FLEXTHERM installation guide, the recorded EMF measurement is considered insignificant (between 0.25 mG and 0.5 mG).

Technical Specifications Heating Cable & Accessories Description GS240K0173 GREEN CA

Specifications Brand Name Flextherm Sub Brand Green Cable Surface™ Item Name Heating Cable Type Braided Voltage Rating 240 V Amperage Rating 2.2 A Core Dual Conductor Material Copper or Copper Alloy Coverage Area 46 ft² (3 in Spacing), 58 ft² (4 in Spacing) Outside Diameter 3.9 mm Wattage 518 W Insulation Material Fluoropolymer Jacket Material Copolymer Color Green Length 52.73 m Standards CAN/CSA-C22.2 No. 130-03, UL 1673 Application Surface Heating UPC 698679752056

Additional document links https://www.gescan.com/products/17-heat-and-ventilation/06-electric-heating/04-floor-warming/01-cable-kits/p-RlRJR1MyNDBLMDE3Mw==-flextherm-173-ft-518w-240v-22amp-green-cable-surface-3-watts

Google Image Links

https://drive.google.com/file/d/10mYn1d6TifCDmQig2mxbiflPk9tZnyjl/view?usp=sharing, https://drive.google.com/file/d/16JZXyR1Xm7daV1dZnAXyAjVrCKMawlLC/view?usp=sharing, https://drive.google.com/file/d/17hJLvlP6TcdJSguGaLGgir_PeRcjp1QM/view?usp=sharing, https://drive.google.com/file/d/18CFr2RD2VfN5ZH17z_Jczk3kssQfliHf/view?usp=sharing, https://drive.google.com/file/d/19O1tMN-uz7zN0XZNzerOdZfUR8US2IRk/view?usp=sharing, https://drive.google.com/file/d/1KzLSJbmnW5RmhvEvpOTnRFhCJFBjWNzk/view?usp=sharing, https://drive.google.com/file/d/1R80ooQBSg_CdL9Ghs-nGcnowGr9p-8j6/view?usp=sharing, https://drive.google.com/file/d/1lnRWI1EmFJyIEMhplRmqhn4ianLXALEY/view?usp=sharing, https://drive.google.com/file/d/1pzCO8My0PEPG_SkMUHe9ByWLgWrWCej4/view?usp=sharing, https://drive.google.com/file/d/1szGATF9hDHv3b6TjLu6NjKdi0VrBkYCo/view?usp=sharing, https://drive.google.com/file/d/1ub5HbN4RCO-Rk5xJKHLeoY0wNLzb1pqv/view?usp=sharing, https://drive.google.com/file/d/1wvaXqIOUvlJTPh0ZYWz0bD27zANqzQk1/view?usp=sharing, https://drive.google.com/file/d/1xQNle5-ISXnM9V1ibUHZ1jd92p0klb47/view?usp=sharing, https://drive.google.com/file/d/1zvdFxclxev7LP5-ROIAGnrlQ4qj_-T46/view?usp=sharing

condition: like new make / manufacturer: Flextherm model name / number: GS240K0173 size / dimensions: 58.3 ft.
