Features
Swim arm for minimum space requirement.

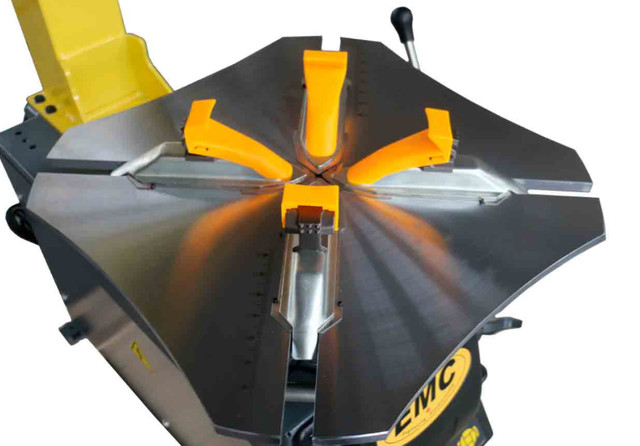

Self-centring four-jaw turntable controlled via two clamping cylinders for correct clamping of the wheel.
Bead breaker with large anti-skid rubber pad.
Locking rim from 10’’-24”.
Specifications

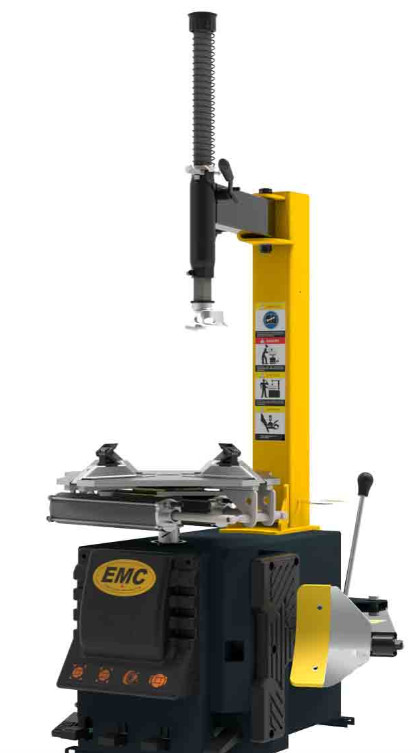

24″ Semi-automatic side swing arm
Power: 1.1Kw
Power supply: 110V
Max wheel diameter: 41″(1040mm)
Max wheel width: 14″(355mm)
Outside clamping: 10″~21″
Inside clamping: 12″～24″
Air supply: 8bar-10bar
Bead breaker force: 2500kg
Noise level: <70dB
