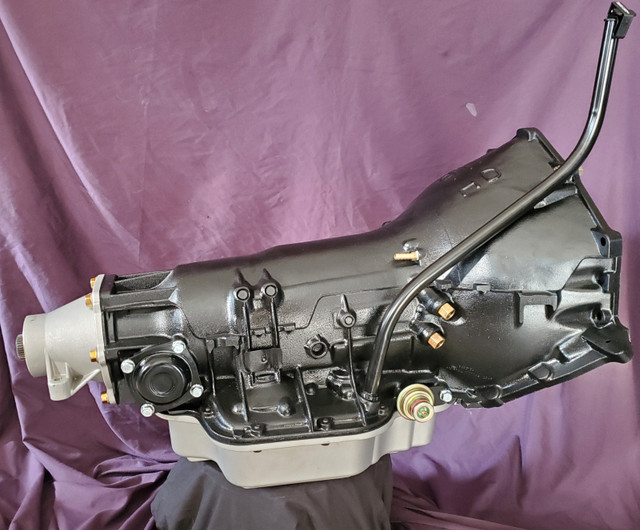

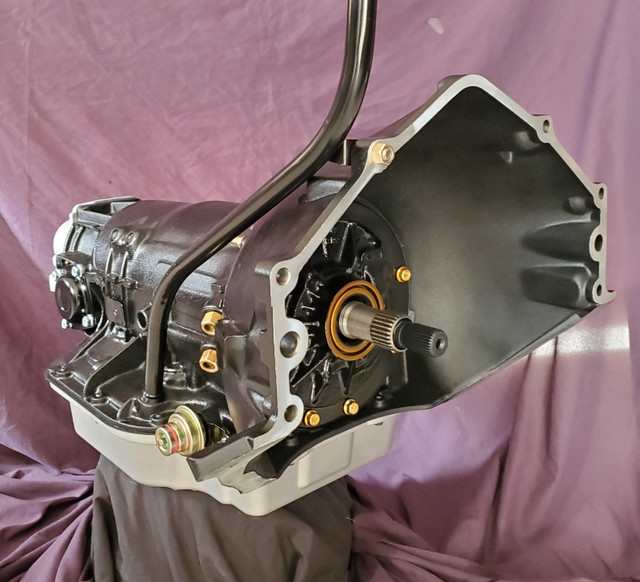

Completely fresh high performance street/mild race 2wd TH400 for a Small/Big block Chevy with 4" slip yoke tailshaft. This is an Auto/Manual shifting (down shifts and holds gear on demand, automatically shifts in "Drive") setup. This is a "HD" case and modified for firm shifts and much more clutch apply pressure. Well built for up to 650hp comfortably, pending vehicle weight and tire size. Nothing hidden, serious build. Serious enquires only, no trades. $2400, or $2000 with good TH400 core.

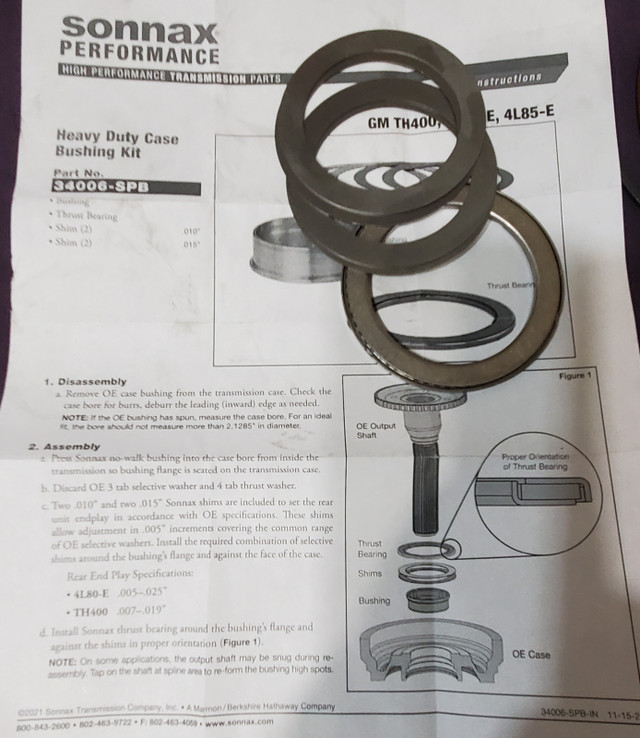

- Sonnax Rear No-Walk Roller Thrust Bearing
- All New Bottom End Bearings (bronze washer between planetaries)
- New Frictions, Seals and Gaskets, Teflon Rings
- Forward & Direct Center Drum Seal Left Off For Full Piston Apply/Dual Fed Direct Drum
- Wave Plates Removed From Forward & Direct Drum For Firm Quick Shifts
- Intermediate HD Snap Ring & Sonnax Case Saver
- Valve Body & Seperator Plate Modified For Firm Shifts/Hard Apply & Dual Fed Direct Drum
- Aluminum Front Accumulator Piston, Spring Removed & Feed Hole Blocked For Firm 2-3 Shift
- New Pump Bearing, 190psi Pump Spring, .154" Converter Charge Restrictor (engine thrust protection)
- Screw In Vent (case tapped for 1/8"NPT)
- Deep Aluminum Oil Pan w/Drain Plug, High Flow Mesh Filter
- Aftermarket Tailhousing (bushed)
- New Locking Dipstick & Adjustable Vacuum Modulator
